WH-1325 arcylic laser cutting machine
Basic information
商品名稱： WH-1325亞克力激光切割機
商品編號： WH-1325亞克力激光切割機
上架時間： 2015-05-21
適用材料： 樹脂、有機玻璃、布料、磁磚、紙板、紙張、皮革、PU革、塑料、橡膠、竹木制品、木材、有機玻璃、亞克力、玉石、貝殼、牛、動物皮脂、雙色板、竹木制品、ABS板、PVC板、纖維以及復合材料等非金屬材料。
適用行業： 鞋材、皮革服裝、廣告裝飾、木材加工、包裝印刷、激光刀模、裝潢裝飾行業、印刷燙金模板、工藝禮行業、電子電器行業、模型行業(建筑模型、航空航海模型、木制玩具)等。
Product details

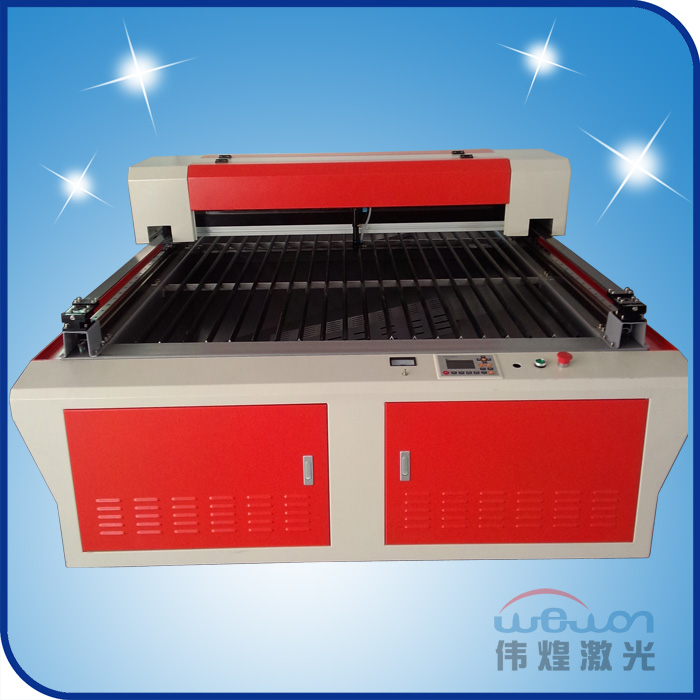

Trade name: WH-1325 acrylic laser cutting machine
Product No.: WH-1325 acrylic laser cutting machine
On sale time: 2015-05-21
Applicable materials: Resin, organic glass, cloth, ceramics, paper board, paper, leather, PU leather, plastic, rubber, bamboo and wooden products, wood, acrylic, jade, shell, ABS board, PVC board, fiber, composite materials, and other non-metallic materials.
Application: Shoe materials, leather, garment, advertising decoration, wood processing, packaging, printing, laser cutting die, decoration, and other industries.
The system is equipped with imported stepper motor and Japanese linear guide rail, as well as laser tubes with different powers. It can greatly increase degree of automation and production efficiency.
Main technical parameters:
| Model |
WH一1325 |
|
Laser Power |
130W |
|
Effective Format |
1300mmx 2500mm |
|
Laser Type |
Co2 glass laser tube sealed off |
|
Working Table |
Knife bar table (optional formula cell or cellular network board) |
|
Maximum Curve Velocity |
50000mm/min(stepping motor) |
|
Cutting Speed |
0-4000mm/min(stepping motor) |
|
Laser Energy Control |
0-100% |
|
Working Temperature |
0℃-45℃ |
|
Positiona Accuracy |
≤0.01mm |
|
Maximum Scanning Accuracy |
2500DPI |
|
Electricity Demand |
220V ± 10% 50HZ |
|
Graphic Format Supported |
Al. DST. PLT, BMP, DXF support software Tajima embroidery software |
Samples:
.jpg)
