CO2 online flying laser making machine
Basic information
商品名稱： CO2在線飛行激光打碼機
商品編號： CO2在線飛行激光打碼機
上架時間： 2015-05-21
適用材料： 切割的材料主要有竹木制品、紙張、布料皮革、有機玻璃、環氧樹脂、亞克力、不飽和聚酯樹脂等非金屬材料。
適用行業： 罐裝食品、瓶裝食品、袋裝食品、綠色食品、礦泉水、蘇打水、果汁、牛奶、飲料、紅酒、白酒、保健酒、葡萄酒、塑膠瓶、玻璃瓶、陶瓷瓶、瓶蓋、膠蓋、鐵蓋、鋁蓋、紙盒、鐵盒、鋁盒、藥盒、化妝品的生產日期、物流碼。
Product details

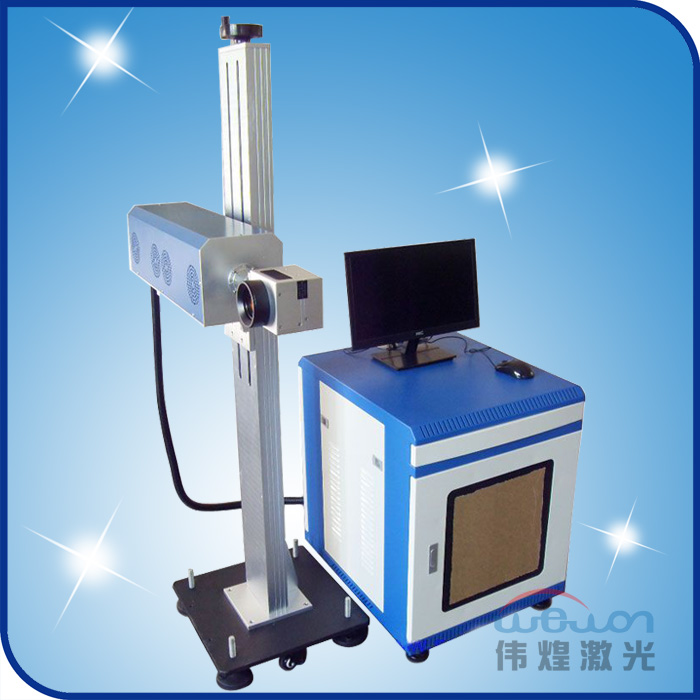

Trade name: CO2 online flying laser marking machine
Product No.: CO2 online flying laser marking machine
On sale time: 2015-05-21
Applicable materials: bamboo and wooden products, paper, cloth, leather, organic glass, epoxy resin, acrylic, unsaturated polyester resin, and other non-metallic materials.
Application: canned food, bottled food, pouch food, green food, spring water, soda water, fruit juice, milk, beverage, wine, and etc.
Online high-speed flying laser ink-jet printer of production date adopts American and German components such as CO2 laser, galvanometer system and DSP control system, and etc.
Product features:
1. Assembly line operation, efficient and convenient
2. Non-contact processing, pollution-free
3. Non-contact, pollution-free, low operation cost, low failure rate
4. The equipment adopts imported RF laser and imported high-speed galvanometer scanning system.
5. Stable performance, 20-hour continuous operation.
Main technical parameters:
|
Model |
WH-F-CO2 30 |
|
Optical maser wavelength |
10.6um |
|
Laser Power |
10W/30W/50W/100W |
|
Lens Range |
100mmX100mm/200mmX200mm |
|
Marking Speed |
7000mm/s |
|
Repeat Accuracy |
±0.002mm |
|
Minimum Line Width |
0.1mm |
|
Machine Power |
0.85KW |
|
Working Mode |
Static/flying |
|
Linkage Control |
Optoelectronic switch/PLC |
|
Power Supply |
220V/3A |
|
Cooling Mode |
Air-cooled/Water-cooled |
Application:
1. In pharmaceutical industry, such as paper packing box and glass package, and etc.
2. In cosmetic industry, such as paper box, glass box, plastic box, and etc.
3. In tobacoo industry
4. In food and beverage
5. In beverage
6. Garment fabrics
7. PVC water pipe
8. LOGO
Samples:
